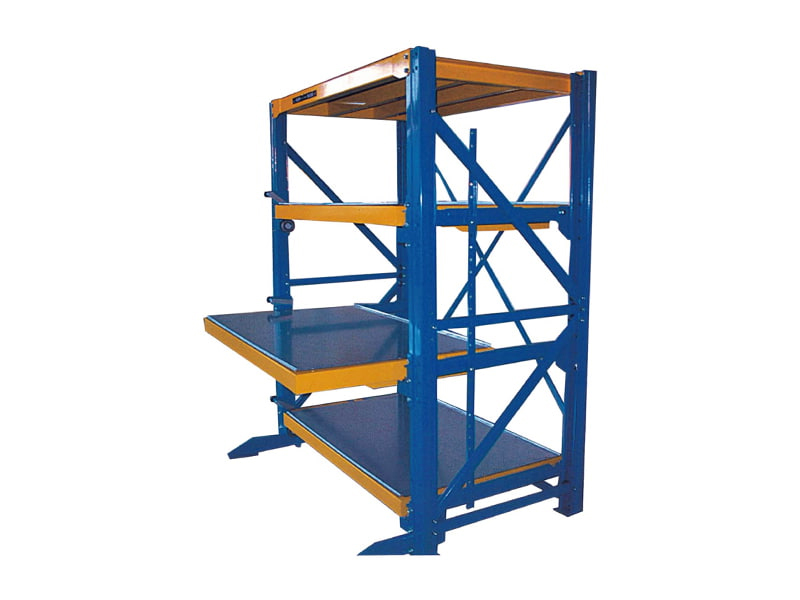

Warehouse Rack

·There are three types of this heavy rack: L, M, H

·The max loading capacity is depending on height and layers, please refer to loading sheet.

·The condition of aboving loading capacity is concrete ground, and the rack should be fixed by expandable bolt.

[Rail type]Rail can be decided by grounds

Different setting condition can cause different working conditions

Two types of rail

Fixed rail used fpr sigle- side operation

Manget bar without rail

Adopt medium and heavy Aisle Rack of high frequency.

Suitable for sequent slanting moveable rack with high frequency.

The rack can be selected by box size and quantities of goods.

Widely used in the logistics warehouse or production line.

Wheel-conveyor is convenient for fasten or discharge the rack.

Easy structure

Easy installation,frame and wheel-conveyor can be adjusted to the suitable place.Suitable for storage of large or small quantities of goods.

Standard wheel-conveyor

Roller of iron core: Ф28
Roller Pitch:50mm、33mm

lmprovement of working efficiency

Easy storage of goods,convenient for working

Functions

FlFO gravity rack is based on inclination (4%) of slide track and dead weight of goods. Gravity straight rollers are used as a support for sliding down. lts throughput is high. Storing and retrieving can be performed simultaneously, so flow speed of goods is increased.

Purposes

lt is suitable for pallet or large-volume storing and retrieving, w/ less kinds of goods. Every sliding track is used for storing and retrieving as one kind of goods as possible. lt has wide application in such industries as mechanical, chemical, electronic, beverage and food etc.

Brake roller

1. 1.Compared with a common pallet rack, it can save 35%-65% of storing density.
2.
3. 2.As for large articles, storing and retrieving are performed by forklift truck and stacker.
4.
5. 3. As for storing and retrieving goods, load is <1200kg generally
6.
7. 4. Due to gravity, rear goods slides to front location automatically
8.
9. 5. First-in first-out (FIFO) is a storing/retrieving mode.
10.
11. 6. This rack structure, in general, is suitable for business warehouse where input / output frequency is high and kinds of goods are less.
12.
13. 7. This rack is simple in structure, w/o noise and power consumption.
14.
15. 8. The first goods that is output will separate from rear goods.

Pallet Security separator

Aisle Rack

Suitable for storing few variety or large quantity of goods.
