Model Representation Model Type Roller length Thickness Shaft Thickness Power Voltage Speed AC5...
The motor roller conveyor is a type of conveyor where electric rollers replace the traditional drive motor to rotate the rollers. This design maximizes space savings, making it especially suitable for multi-level conveyors and applications requiring ultra-low heights. Motor rollers are classified into two types based on voltage: AC (alternating current) and DC (direct current).
Model Representation Model Type Roller length Thickness Shaft Thickness Power Voltage Speed AC5...
Model Representation
Model | Type | Roller length | Thickness | Shaft | Thickness | Power | Voltage | Speed |
AC50 | AS | 200-1500 | 1.5 | 12 | 8 | 22W | 3PH220V(50Hz/60Hz) 3PH380V(50Hz/60Hz) 1PH220V(50Hz/60Hz) |
1M~3.5M 4M-13M 16M~40M 75M-130M |
ASS | 15W | |||||||
AU | 15W | |||||||
AC60/57 | AS | 200-1500 | 1.5 | 12 | 8 | 30W | 3PH220V(50Hz/60Hz) 3PH380V(50Hz/60Hz) 1PH220V(50Hz/60Hz) |
1M~3.5M 4M~13M 16M-40M 75M-130M |
ASS | 20W | |||||||
BP | 45W | |||||||
BPS | 20W | |||||||
AU | 30W | |||||||
AC60/76 | 170~1500 | 2.5 | 15 | 11 | 60W 90W 120W 150W |
3PH220V(50Hz/60Hz) 3PH380V(50Hz/60Hz) 1PH220V(50Hz/60Hz) |
1M~3.6M 4.4M-13.3M 15.8M-48M 100.5M~181.8M |
Standard Dimensions
Model Representation Standard Dimensions Special Requiments
Model Representation
Standard Dimensions
Special Requiments
Model SST-57A(SST-60A) Drive mode Motor roller(Single action) Auxiliary RollerDiameter x Thic...
Model | SST-57A (SST-60A) |
Drive mode | Motor roller(Single action) |
Auxiliary Roller Diameter x Thickness x Shaft |
57.2×1.4x12 (60.5×2.3×12 (Galvanizing) |
Roller width | 200~1,000 |
Roller pitch | 75 100 150 |
Frame size | 90×30×3.2 |
Length (L) | 1000(1050) 1500 2000(1950) 3000m |
Conveyor width | W+75 |
Height(H) | 100 (102) |
Capability(kg/m) | |
Speed(m/min) | 50/60HZ 03 type:2.5/2.8 04 type:3.4/3.8 05 type:4.7/5.2 10 type:9.1/10.8 15 type:12.4/14.8 20 type:17.0/20.2 |
Motor power | |
Power | AC200V(three-phase) AC380V(three-phase) |
Model SST-57B(SST-60B) Drive mode Motor roller(PU V belt) Auxiliary RollerDiameter x Thicknes...
Model | SST-57B (SST-60B) |
Drive mode | Motor roller(PU V belt) |
Auxiliary Roller Diameter x Thickness x Shaft |
57.2×1.4×12 (60.5x2.3x12) (Galvanizing) |
Roller width | 300~1000 |
Roller pitch | 75 100 150 |
Frame size | 90×30×3.2 |
Length (L) | 1000(1050) 1500 2000(1950) 3000m |
Conveyor width | W+90 |
Height(H) | 100(102) |
Capability(kg/m) | |
Speed(m/min) | 50/60HZ 03 type:2.5/2.8 04 type:3.4/3.8 05 type:4.7/5.2 10 type:9.1/10.8 15 type:12.4/14.8 20 type:17.0/20.2 |
Motor power | |
Power | AC200V(three-phase) AC380V(three-phase) |
Model SST-57C(SST-60C) Drive mode Motor roller r(#40 Sprocket) Auxiliary RollerDiameter x Thi...
Model | SST-57C (SST-60C) |
Drive mode | Motor roller r(#40 Sprocket) |
Auxiliary Roller Diameter x Thickness x Shaft |
57.2×2.1×12 (60.5x2.3x12) (Galvanizing) |
Roller width | 300~1000 |
Roller pitch | 75 100 150 |
Frame size | 90×30×3.2 |
Length (L) | 1000(1050) 1500 2000(1950) 3000m |
Conveyor width | W+120 |
Height(H) | 100(102) |
Capability(kg/m) | |
Speed(m/min) | 50/60HZ 03 type:2.5/2.8 04 type:3.4/3.8 05 type:4.7/5.2 10 type:9.1/10.8 15 type:12.4/14.8 20 type:17.0/20.2 |
Motor power | |
Power | AC200V{three-phase) AC380V(three-phase) |
Model SST-38D Drive mode Motor roller(PU V belt ) Auxiliary RollerDiameter x Thickness x Shaf...
Model | SST-38D |
Drive mode | Motor roller(PU V belt ) |
Auxiliary Roller Diameter x Thickness x Shaft |
38.1×1.2×12 (Galvanizing) |
Roller width | 300~800 |
Roller pitch | 53 75 100 |
Frame size | 90×30×3.2 |
Length (L) | 1000(1050) 1500 2000(1950) 3000m |
Conveyor width | W+75 |
Height(H) | 95 |
Capability(kg/m) | |
Speed(m/min) | 50/60HZ 03 type:2.5/2.8 04 type:3.4/3.8 05 type:4.7/5.2 10 type:9.1/10.8 15 type:12.4/14.8 20 type:17.0/20.2 |
Motor power | |
Power | AC200V(three-phase) AC380V(three-phase) |

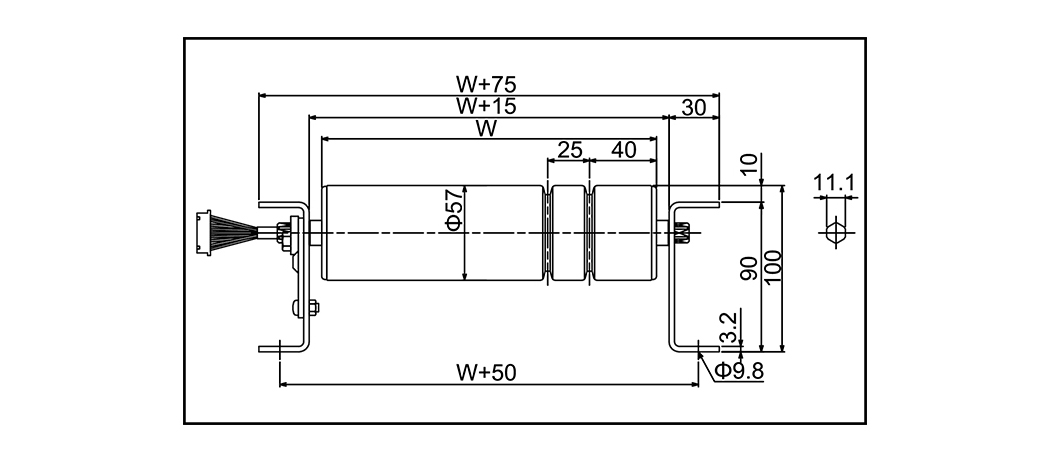

Model SST-57D(SST-60D) Drive mode Motor roller(PU V belt) Auxiliary RollerDiameter x Thicknes...
Model | SST-57D (SST-60D) |
Drive mode | Motor roller(PU V belt) |
Auxiliary Roller Diameter x Thickness x Shaft |
57.2×1.4×12 (60.5x2.3x12) (Galvanizing) |
Roller width | 300~1000 |
Roller pitch | 75 100 150 |
Frame size | 90×30×3.2 |
Length (L) | 1000(1050) 1500 2000(1950) 3000m |
Conveyor width | W+75 |
Height(H) | 100(102) |
Capability(kg/m) | |
Speed(m/min) | 50/60HZ 03 type:2.5/2.8 04 type:3.4/3.8 05 type:4.7/5.2 10 type:9.1/10.8 15 type:12.4/14.8 20 type:17.0/20.2 |
Motor power | |
Power | AC200V(three-phase) AC380V(three-phase) |

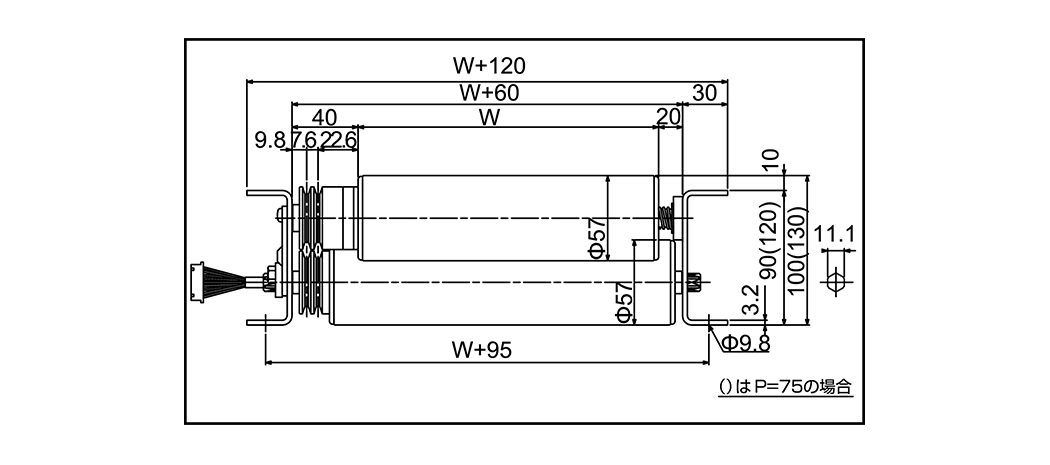

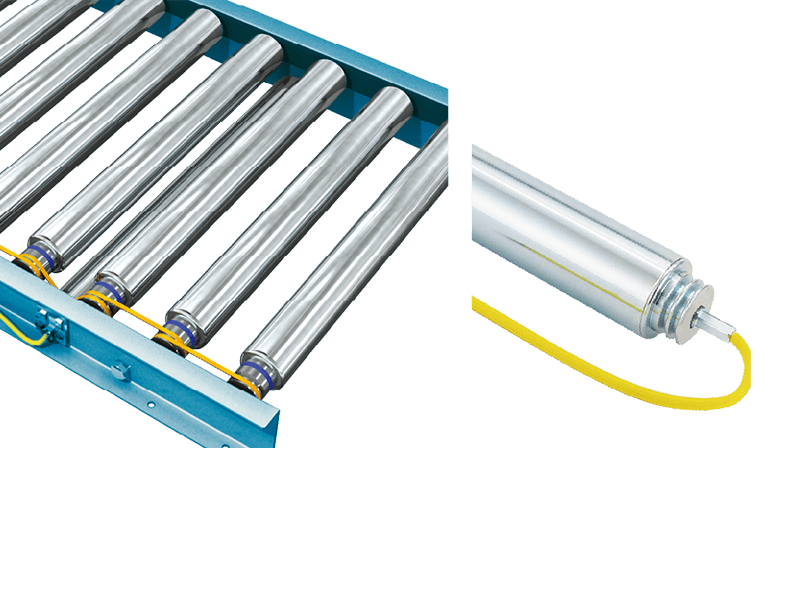

Model SST-57AQ(SST-60AQ) Drive mode Motor roller(PUV belt) Auxiliary RollerDiameter x Thickne...
Model | SST-57AQ (SST-60AQ) |
Drive mode | Motor roller(PUV belt) |
Auxiliary Roller Diameter x Thickness x Shaft |
57.2×1.4×12 (60.5×2.3x12) (Galvanizing) |
Roller width | 300~1000 |
Roller pitch | 75 100 150 |
Frame size | 90×30×3.2 |
Length (L) | 1000(1050) 1500 2000(1950) 3000m |
Conveyor width | W+120 |
Height(H) | 100、130(102、130) |
Capability(kg/m) | |
Speed(m/min) | 50/60HZ 03 type:2.5/2.8 04 type:3.4/3.8 05 type:4.7/5.2 10 type:9.1/10.8 15 type:12.4/14.8 20 type:17.0/20.2 |
Motor power | |
Power | AC200V(three-phase) AC380V(three-phase) |
Model DC-57A(DC-60A) Drive mode Motor roller(Single action) Auxiliary RollerDiameter x Thickn...
Model | DC-57A (DC-60A) |
||
Drive mode | Motor roller(Single action) | ||
Auxiliary Roller Diameter x Thickness x Shaft |
57.2×1.4×12 (60.5×2.3×12) (Galvanizing) |
||
Roller width | 280~1000 | ||
Roller pitch | 75 100 150 | ||
Frame size | 90×30×3.2 | ||
Length (L) | 1000(1050) 1500 2000(1950) 3000m |
||
Conveyor width | W+75 | ||
Speed(m/min) | Model 25 type 30 type 40 type 95 type |
MIN 6.0 7.3 9.9 21.6 |
MAX 23.5 28.5 39.1 85.9 |
Motor power | 35W | ||
Power | DC24V |
Model DC-57B(DC-60B) Drive mode Motor roller (PU V belt) Auxiliary RollerDiameter x Thickness...
Model | DC-57B (DC-60B) |
||
Drive mode | Motor roller (PU V belt) | ||
Auxiliary Roller Diameter x Thickness x Shaft |
57.2×1.4×12 ( 60.5×2.3×12) (Galvanizing) |
||
Roller width | 300~1000 | ||
Roller pitch | 75 100 150 | ||
Frame size | 90×30×3.2 | ||
Length (L) | 1000(1050) 1500 2000(1950) 3000m |
||
Conveyor width | W+90 | ||
Speed(m/min) | Model 25 type 30 type 40 type 95 type |
MIN 6.0 7.3 9.9 21.6 |
MAX 23.5 28.5 39.1 85.9 |
Motor power | 35W | ||
Power | DC24V |
Model DC-57C(DC-60C) Drive mode Motor roller r(#40 Sprocket ) Auxiliary RollerDiameter x Thi...
Model | DC-57C (DC-60C) |
||
Drive mode | Motor roller r(#40 Sprocket ) | ||
Auxiliary Roller Diameter x Thickness x Shaft |
57.2x2.1×12 ( 60.5×2.3×12) (Galvanizing) |
||
Roller width | 300~1000 | ||
Roller pitch | 75 100 150 | ||
Frame size | 90×30×3.2 | ||
Length (L) | 1000(1050) 1500 2000(1950) 3000m |
||
Conveyor width | W+120 | ||
Speed(m/min) | Model 25 type 30 type 40 type 95 type |
MIN 6.0 7.3 9.9 21.6 |
MAX 23.5 28.5 39.1 85.9 |
Motor power | 35W | ||
Power | DC24V |

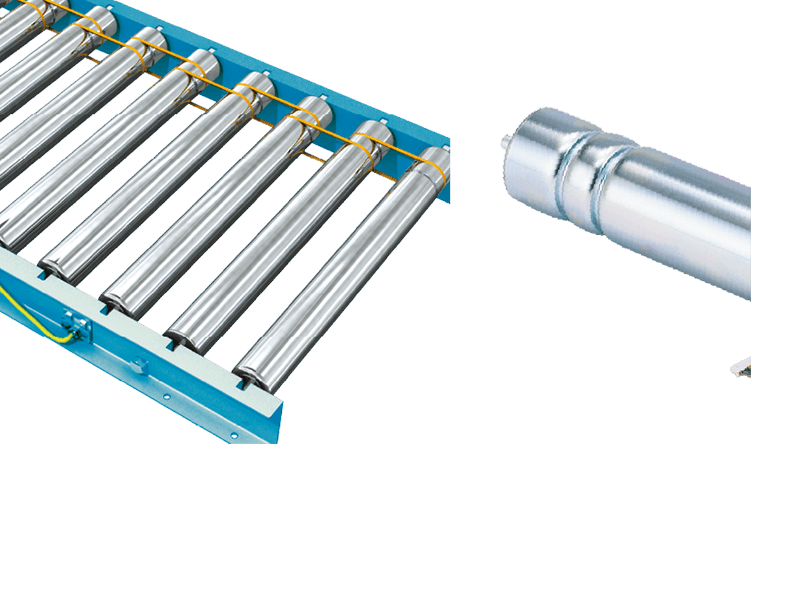

Model DC-38D Drive mode Motor roller (PU V belt) Auxiliary RollerDiameter x Thickness x Shaft...
Model | DC-38D | ||
Drive mode | Motor roller (PU V belt) | ||
Auxiliary Roller Diameter x Thickness x Shaft |
38×1.2×12 (Galvanizing) |
||
Roller width | 300~800 | ||
Roller pitch | 53 75 100 | ||
Frame size | 90×30×3.2 | ||
Length (L) | 1000(1050) 1500 2000(1950) 3000m |
||
Conveyor width | W+75 | ||
Speed(m/min) | Model 25 type 30 type 40 type 95 type |
MIN 5.8 7.0 9.6 21.2 |
MAX 31.4 38.3 52.4 115.0 |
Motor power | 35W | ||
Power | DC24V |
The assembly line masters the assembly of the conveyor. Among other things, it promotes specialization and thus increases productivity. If a failure o...
READ MOREThe assembly line masters the assembly of the conveyor. Among other things, it promotes specialization and thus increases productivity. If a failure o...
READ MOREThe assembly line masters the assembly of the conveyor. Among other things, it promotes specialization and thus increases productivity. If a failure o...
READ MOREHow does a motor roller conveyor contribute to automating material handling in warehouses or production lines?
In the ever-evolving landscape of logistics and production, efficiency is not just a goal—it’s a necessity. Automation plays a pivotal role in achieving this, and among the many tools transforming material handling, motor roller conveyor stand out. Designed to replace traditional drive systems, these conveyors optimize performance, save space, and offer unparalleled adaptability for modern warehouses and production lines.
Innovative Design for Space Optimization
The motor roller conveyor is engineered to streamline operations with a compact, efficient design. Unlike conventional systems, where a central motor drives the rollers, this technology uses electric rollers to power movement. This eliminates bulky drive components, freeing up valuable floor space and allowing for ultra-low-profile installations.
This unique feature is particularly advantageous in facilities requiring multi-level conveyors or those with strict spatial constraints. By maximizing vertical space, businesses can increase throughput without expanding their physical footprint—an invaluable benefit for high-density operations.
Versatility in Power Systems
Motorized rollers come in two distinct variants based on voltage:
AC (Alternating Current): Known for its robustness, AC-powered rollers are ideal for long-distance operations or environments where consistent power delivery is paramount.
DC (Direct Current): Renowned for precision, DC-powered rollers enable fine control over speed and torque, making them suitable for applications demanding high accuracy and energy efficiency.
This dual classification ensures that businesses can choose a system tailored to their operational needs, enhancing flexibility and scalability.
Elevating Automation with Advanced Logistics Equipment
Wuxi Huiqian Logistics Machinery Manufacturing Co., Ltd., a leader in the logistics equipment industry, exemplifies how innovation drives automation. Headquartered in the Wuxi National Hi-Tech Technology Development District, the company draws upon advanced Japanese technology to produce a comprehensive range of products. From rollers, roller conveyors, and belt conveyors to storage cages, logistics trolleys, and mini conveyors, each solution is crafted with precision and reliability.
Backed by a scientific quality management system and cutting-edge processing equipment, Wuxi Huiqian's offerings are recognized for their integrity, strength, and durability. The company’s location within a thriving logistics hub further enhances its ability to deliver top-tier products and services efficiently.
Streamlining Material Handling
In addition to motor roller conveyor, the company’s product lineup includes belt conveyors for streamlined transport, storage cages for secure inventory management, and logistics trolleys for enhanced mobility. These tools collectively create an ecosystem of automation, reducing manual labor, improving accuracy, and accelerating workflows.
Motorized roller conveyors, in particular, are indispensable in applications requiring swift, precise movement. By integrating these systems into production lines or warehouses, businesses can reduce downtime, improve safety, and achieve a higher degree of operational harmony.
A Commitment to Excellence
Wuxi Huiqian's commitment to quality extends beyond product innovation. The company actively invites industry professionals to visit its facility, share insights, and explore collaborative opportunities. This open dialogue fosters mutual growth and ensures that every solution aligns with customer expectations.
In today’s competitive landscape, embracing automation is not just an option; it’s a strategy for survival and growth. motor roller conveyors embody the future of material handling, offering a blend of efficiency, adaptability, and precision. Whether in warehouses or production lines, these systems are revolutionizing the way goods are transported, stored, and managed.
For businesses seeking to elevate their operations, motor roller conveyors—coupled with Wuxi Huiqian’s innovative solutions—offer a pathway to excellence. Investing in these technologies is an investment in productivity, sustainability, and success.
